PTZPTZ Corrector

Installed on gas meters to automatically convert measured volume to standard conditions (0°C, 101.325 kPa). Superior accuracy with a high-capacity lithium battery lasting over 4 years.

Product by JB Enertek Co., Ltd. — LOOP Partner

SF-2200H+ PTZ Corrector
Compact Basic

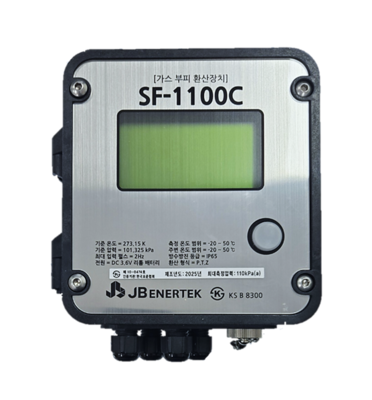

SF-1100C

Compact Model

A compact basic model with a galvanized mounting bracket for flexible installation. Supports RS-232 communication and Pulse Output.

Features
  • High accuracy (Pressure 0.25%, Temperature 0.5°C)
  • Remaining battery level indicator
  • High-capacity lithium battery — over 4 years operation
  • Pulse Output (Vb) for external transmission
Power
3.6 VDC 19,000 mA/h Lithium Battery
Display
Graphic LCD
Communication
RS-232
Pressure Accuracy
0.25 %
Temperature Accuracy
0.5 ℃
Memory
Data storage over 3 years
Output
Pulse Output (Vb)
SF-1100C
Latest — Wireless Built-in

SF-2200H+

Integrated Wireless Module

Latest model with SKT Cat-M1 / LGU+ NB-IoT wireless module and battery pack integrated. External pressure sensor allows flexible installation.

Features
  • Wireless module & battery pack fully integrated
  • High-frequency input (Max 1,000 Hz) for precise metering
  • Remote reading via SKT Cat-M1 / LGU+ NB-IoT
  • External pressure sensor for easy installation
  • Reverse-flow detection to prevent metering errors
Power
3.6 VDC 38,000 mA/h Lithium Battery
Display
Graphic LCD
Communication
RS-232 / RS-485 / SKT Cat-M1 / LGU+ NB-IoT
Pressure Accuracy
0.25 %
Temperature Accuracy
0.5 ℃
Memory
Data storage over 3 years
Input Frequency
Max 1,000 Hz
Output
Pulse Output / RS-232 / RS-485 / 4~20 mA
SF-2200H+
Wireless External

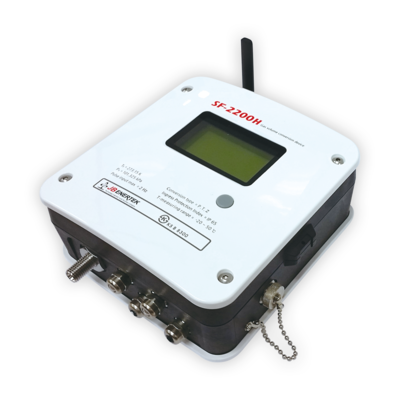

SF-2200H

External Wireless Module

Supports remote reading via SK Cat-M1 / LGU+ NB-IoT wireless module (external). Features high-frequency input.

Features
  • High-frequency input (Max 1,000 Hz)
  • SKT Cat-M1 / LGU+ NB-IoT remote reading (Option)
  • RS-232 / RS-485 / Digital Output expandability
  • Reverse-flow detection (Firmware 2.0B and above)
Power
3.6 VDC 38,000 mA/h Lithium Battery
Display
Graphic LCD
Communication
RS-232 / RS-485 / SKT Cat-M1 / LGU+ NB-IoT
Pressure Accuracy
0.25 %
Temperature Accuracy
0.5 ℃
Memory
Data storage over 3 years
Input Frequency
Max 1,000 Hz
Output
Pulse Output / RS-232 / RS-485
SF-2200H
CDMA Communication

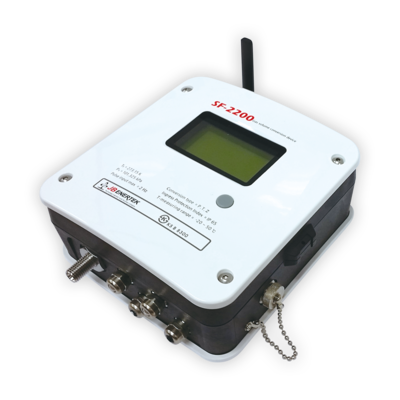

SF-2200

RS-485 + CDMA

General-purpose model supporting RS-485 (Modbus RTU), CDMA, Pulse Output (Vm, Vb, Alarm), and 4–20 mA output.

Features
  • Pulse Output (Vm, Vb, Alarm) for external transmission
  • 4–20 mA analog output
  • CDMA remote communication
Power
3.6 VDC 38,000 mA/h Lithium Battery
Display
Graphic LCD
Communication
RS-232 / RS-485 / CDMA
Pressure Accuracy
0.25 %
Temperature Accuracy
0.5 ℃
Memory
Data storage over 3 years
Output
Pulse Output (Vm, Vb, Alarm) / 4~20 mA
SF-2200
RS-485 Standard

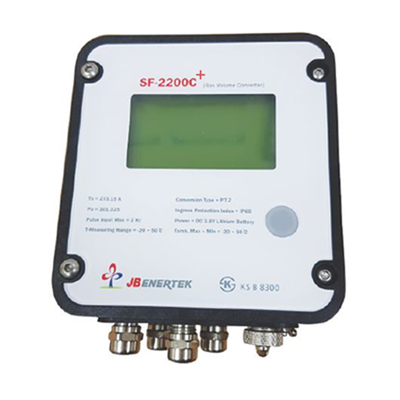

SF-2200C+

RS-232 / RS-485 Modbus

Standard model supporting RS-232 and RS-485 (Modbus RTU) communication. Flexible installation via galvanized mounting bracket.

Features
  • RS-232 / RS-485 Modbus RTU communication
  • Pulse Output (Vb) for external transmission
  • High-capacity lithium battery — over 4 years operation
Power
3.6 VDC 38,000 mA/h Lithium Battery
Display
Graphic LCD
Communication
RS-232 / RS-485 (Modbus RTU)
Pressure Accuracy
0.25 %
Temperature Accuracy
0.5 ℃
Memory
Data storage over 3 years
Output
Pulse Output (Vb)
SF-2200C+
Compact Versatile

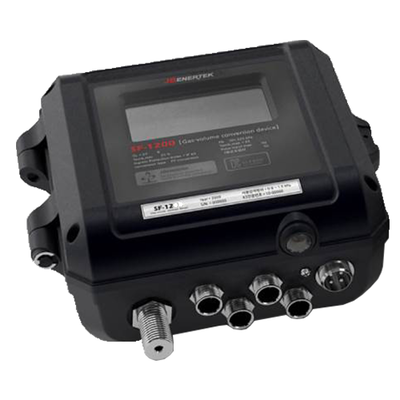

SF-1200

Space-saving Compact Design

Small form-factor model easy to install in tight spaces around gas meters. Supports a special galvanized mounting bracket.

Features
  • Compact design for installation in confined spaces
  • Pulse Output (Vm, Vb, Alarm) for external transmission
  • Remote monitoring via dedicated software (Option)
Power
3.6 VDC 38,000 mA/h Lithium Battery
Display
Graphic LCD
Communication
RS-232
Pressure Accuracy
0.25 %
Temperature Accuracy
0.5 ℃
Memory
Data storage over 3 years
Output
Pulse Output (Vm, Vb, Alarm)
SF-1200
Principle

보정 원리

A PTZ Corrector is installed on a gas meter to automatically convert the measured volume (Vm) to the standard-condition volume (Vb) by applying temperature (T), pressure (P), and compressibility factor (Z) — referenced to 0°C and 101.325 kPa.

Temperature Accuracy

0.5 ℃

Pressure Accuracy

0.25 %

Battery Life

Over 4 years (Lithium)

Manufactured & Supplied by

제이비에너텍(주)

JB Enertek is a Korean specialist company that partners with LOOP to supply PTZ correctors for gas metering infrastructure.
