LOOP Product · Radar
DRONE DETECTION
3D RADAR
Proven Drone Detection Radar Solutions through Extensive Field Experience. X-band · Ku-band · Hybrid lineup covering all operational environments.

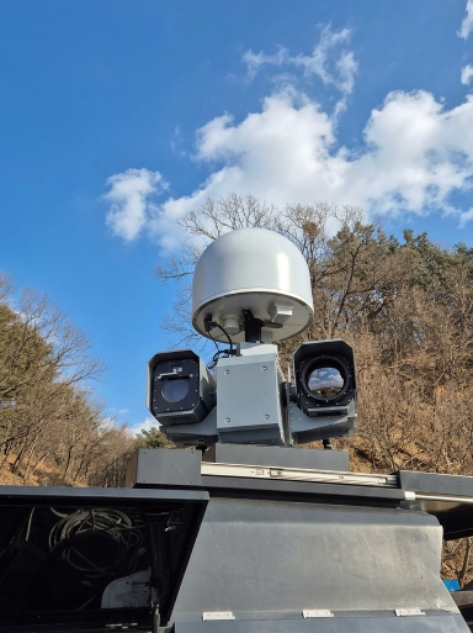

LR-500
Pulse-Doppler Rotating Radar
The LR-500 is an X-band drone detection radar featuring a rotating mechanism that provides full 360-degree coverage using a single frequency. Based on pulse-Doppler technology, it enables reliable detection and identification of targets. Its wide-area surveillance capability makes it highly effective for continuous monitoring and early threat detection in complex operational environments.

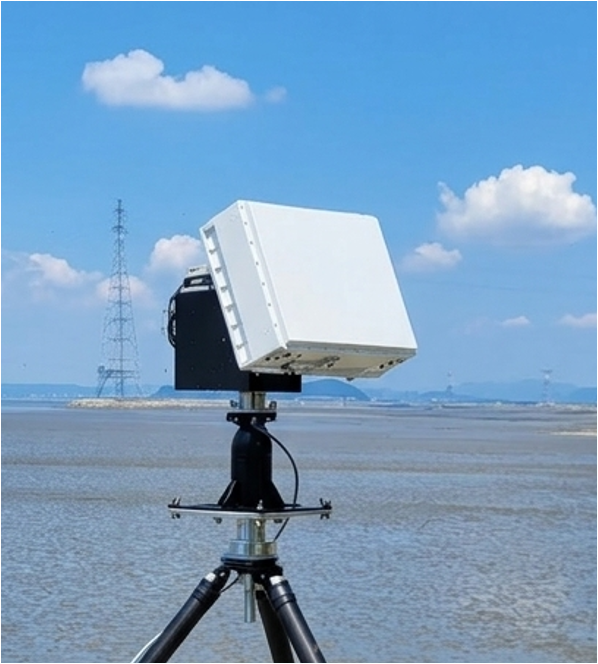

LR-300
Pulsed AESA Tracking Radar
The LR-300 is a Ku-band AESA radar designed for high-precision drone tracking and target monitoring. Its electronically steered beam enables rapid response and continuous tracking, even in shadowed areas or regions of high operational interest. Leveraging AESA technology, it provides superior tracking accuracy, fast update rates, and reliable performance against small and fast-moving targets.

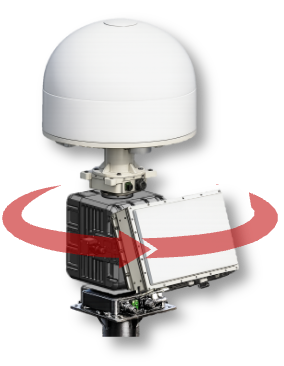

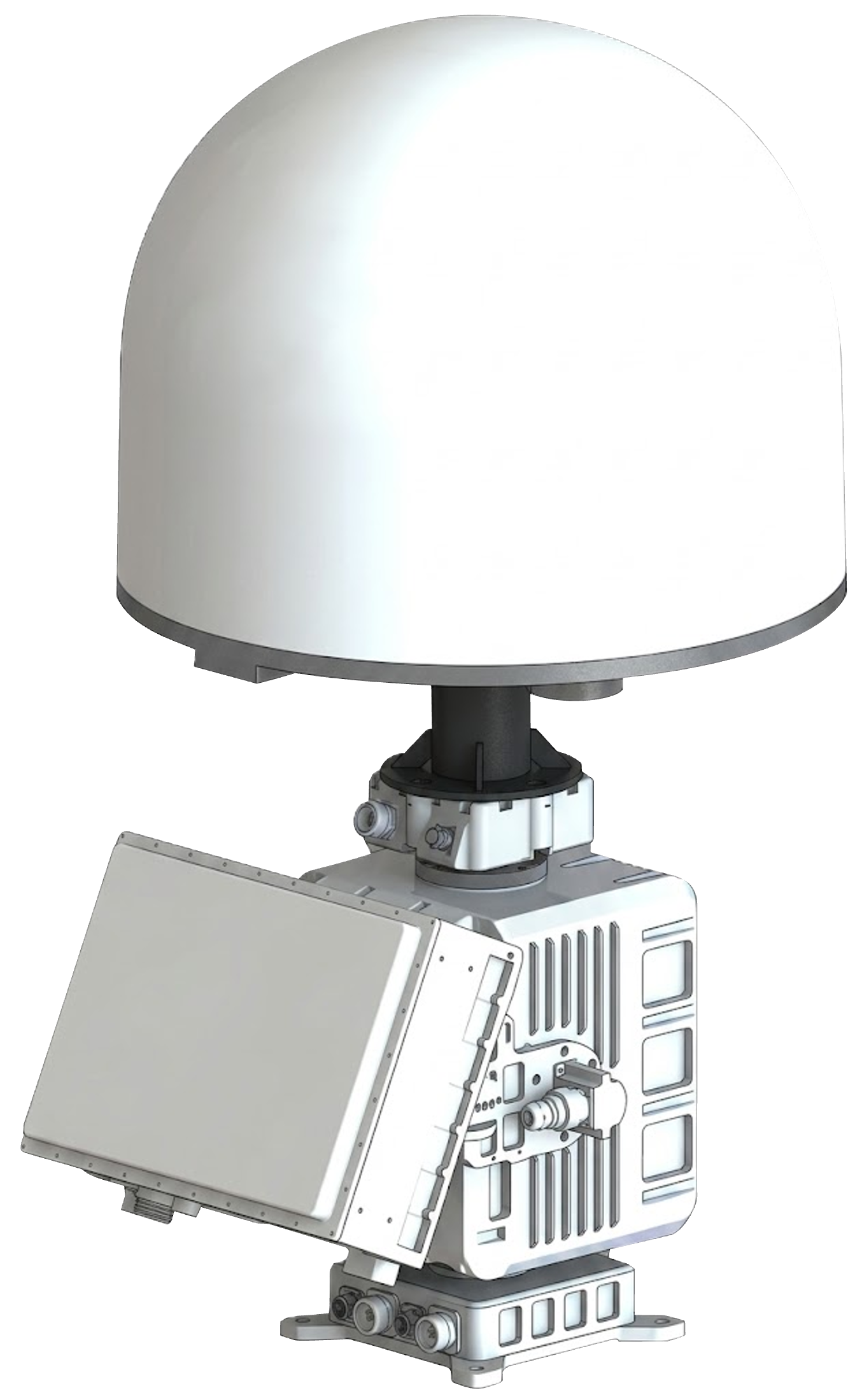

LR-500HB
The Ultimate Hybrid Radar for Drone Detection

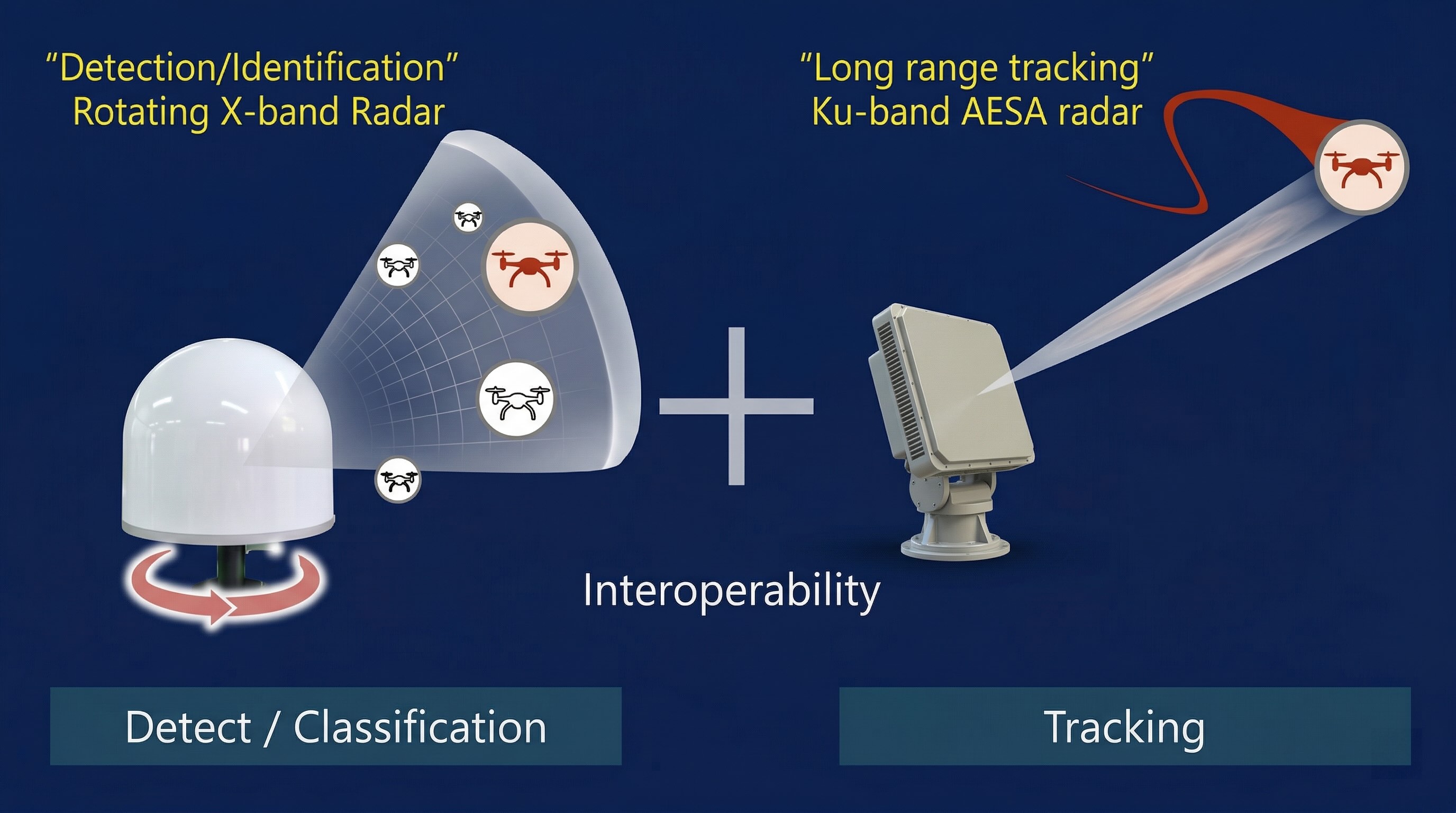

The LR-500HB is a hybrid radar system that combines the detection and identification strengths of X-band with the precise tracking capabilities of Ku-band. The 360° rotating stage simultaneously delivers full-perimeter surveillance and 0.1-second high-speed tracking.
A highly optimized Hybrid-radar for detection, identification, and tracking of drone
Improves the searching target of Camera with 0.1s scan rate of radar
Functional Strengths
